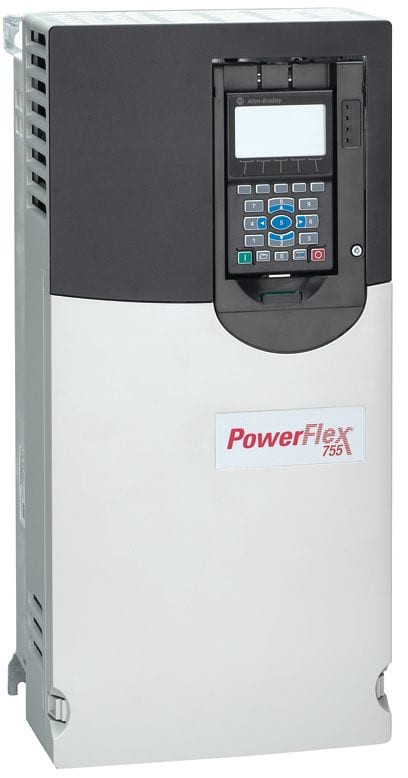

Allen-Bradley - Air Cooled 755 AC Drive - 20G1D3D505LNDNNNNN-C11
31 533,20 €
par PC
31 533,20 €
1
Livraison
Nombre d'articles disponibles pour la livraison :0
Conditionnement
1 PC
EAN
00191326513838
Réf. Routeco
20G1D3D505LNDNNNNN-C11
Réf. Fournisseur
20G1D3D505LNDNNNNN-C11
Réf. Commerciale
20G1D3D505LNDNNNNN-C11
- Power ratings: 200...240V: 0.37...132 kW / 0.5…200 Hp / 2.2…477 A 380…480V: 0.75…1400 kW / 1.0…2000 Hp / 2.1…2330 A 600V: 1.0…1500 Hp / 1.7…1530 A 690V: 7.5…1500 kW / 12…1485 A IP00/IP20 NEMA/UL Type Open, flange mount, IP54 NEMA/UL Type 12 Pre-engineered Power Option Bay provides cost-effective solution for popular power options Dual-port EtherNet/IP Option Module helps you leverage EtherNet/IP networks, minimize the number of managed switches, and reduce cabling needs when using Device Level Ring (DLR) networks Automatic Device Configuration (ADC) allows Logix controllers to detect a replaced drive and download all configuration parameters automatically V/Hz control, vector control with FORCE® technology, sensorless vector control, and permanent magnet motor control Integrated Motion on EtherNet/IP eases drive configuration and control by using profiles and instruction sets embedded in the Studio 5000 Logix Designer® application Predictive diagnostics for increasing the life of cooling fans and relay outputs Configuration and programming via integral LCD Human Interface Module (HIM), DriveTools SP software, or Connected Components Workbench software Supports easy integration through the embedded EtherNet/IP port and five option slots that support feedback, I/O, safety, and communications modules and an auxiliary 24V DC power supply
