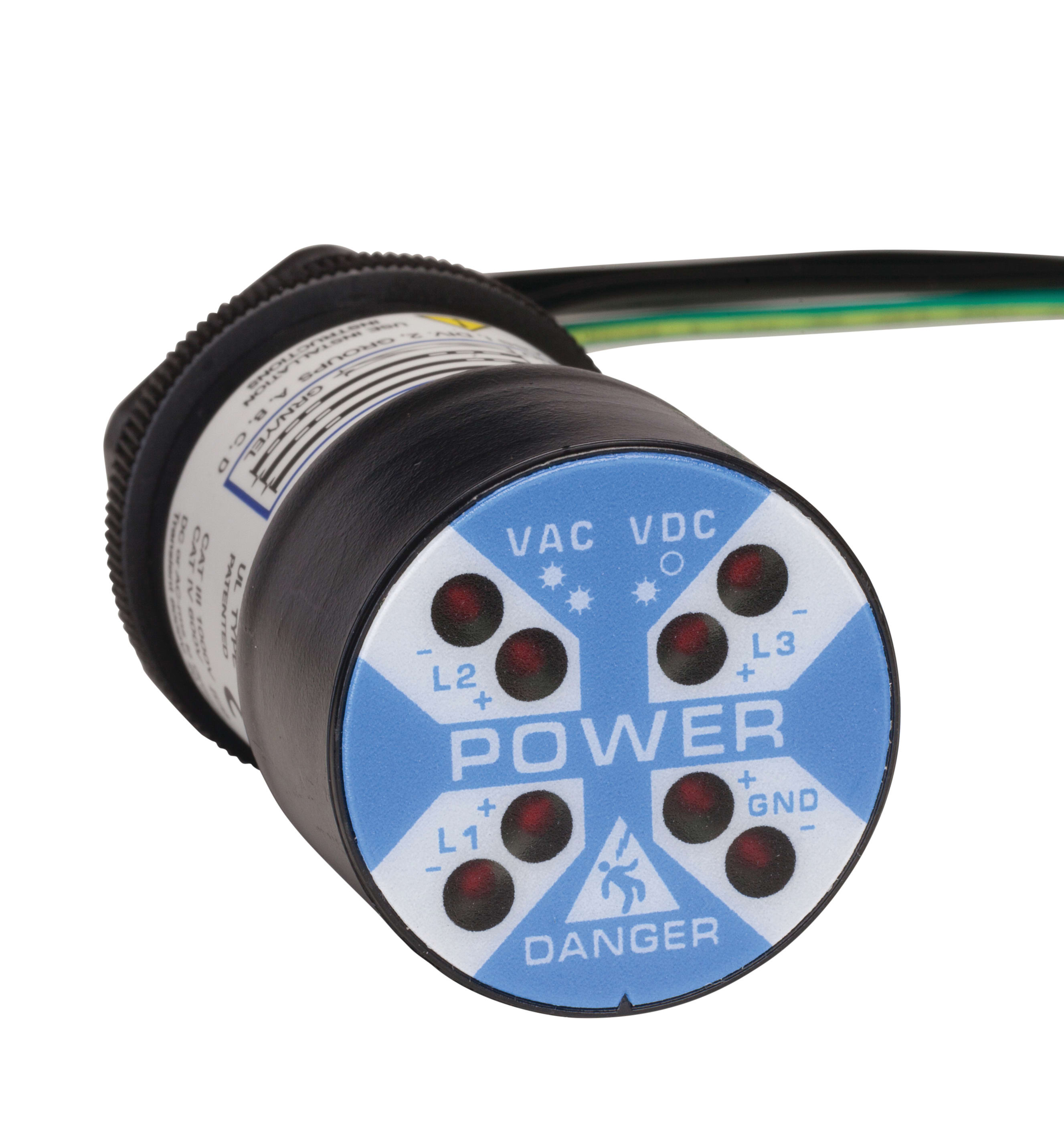

Grace Technologies - R-3W2 ASSEMBLY - R-3W2

Voltage Indicator, Flashing LEDs, Multi-Environment (Cat III/Cat IV Rated) 40-600V AC. 50/60Hz. 30-1000V DC. CAT III and IV rated.

• Grace Voltage Indicators are Permanent Electrical Safety Devices (PESDs) that visually represent presence of voltage with flashing or non-flashing redundant LED lights.

• Typically hardwired to the load side of a disconnect switch on a MCC bucket or a Variable Frequency Drive, Voltage Indicators illuminate whenever hazardous voltage or stored energy is present in the system.

• R-3W Series Voltage Indicators are suitable for both AC and DC applications from 40-600VAC and 30-1000VDC is a one-size-fits-all solution that detects 3-phase AC/DC voltage.

• Safely and productively visualizes zero energy presence and enhances compliance to OSHA & NFPA 70E/CSAZ462, when installed and verified by a qualified electrician and incorporated into the facility’s electrical safety procedure.
