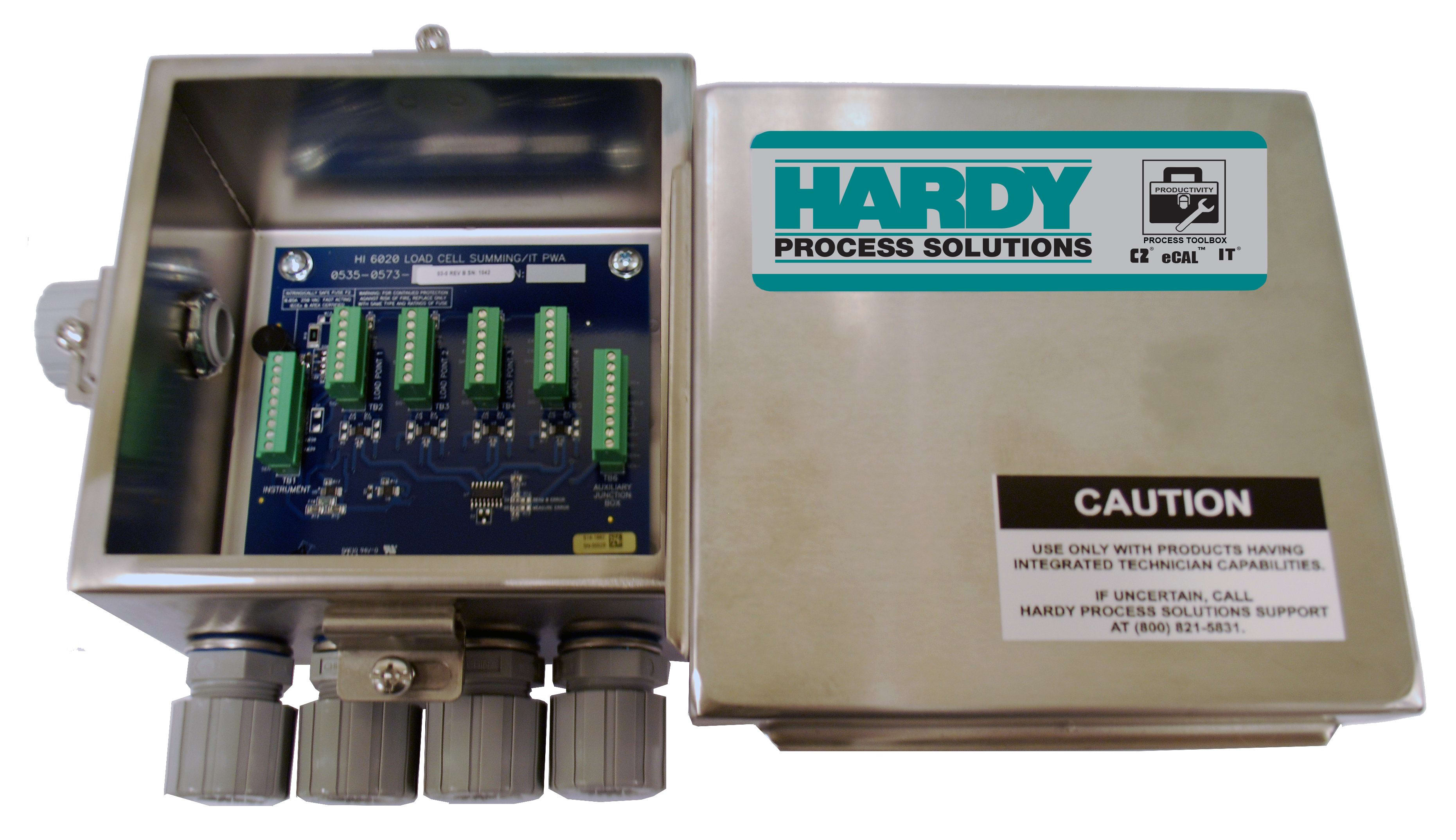

Hardy Process - Hardy NEMA 4X/IP66 Stainless S - HI6020IT-SS1

Integrated Technician Summing Card in Stainless Steel Enclosure, 4X/IP66, 5 holes/6 glands, Class I, II, III Div 1.

• The Hardy HI 6020 Summing box is a critical component in a weighing system that enables use of Hardy’s core technologies - C2® electronic calibration and Integrated Technician® (IT).

• Each summing box distributes excitation voltage to up to four load cells and transfers each load cell’s performance characteristics and weight signals to the Hardy weighing instrument. A summing card with IT allows a weighing

• instrument operator to switch to the summing card’s internal test circuit and diagnose the entire weighing system from the front panel of the instrument or a remote location over the Internet. Individual load cells can be isolated from each other for weight and voltage readings, allowing a technician or

• operator to quickly and safely troubleshoot weighing system faults and anomalies.

• The HI 6020 Summing box is available with a variety of options, including IT, trim pots (for non-Hardy load cells) and a NEMA 4X enclosure in stainless steel, painted steel or fiberglass. The enclosure features a thick-wall design with an interior seal for a long lasting, robust wash-down installation.

• The NEMA 4X stainless steel models are designed for Hazardous Locations and come with either Class I, II, III, Division 1, Class I, Zone 0 and Zone 20 for the U.S. or ATEX and IECEx certifications for International.

• A single HI 6020 Summing box supports up to 4 load cells.

• To connect two HI 6020 Summing Boxes together to support between 5 and 8 load cells, use the TB6 Auxiliary connection between boxes. Stainless Steel summing boxes ith the TB6 option come with 6 holes instead of the standard 5 holes
