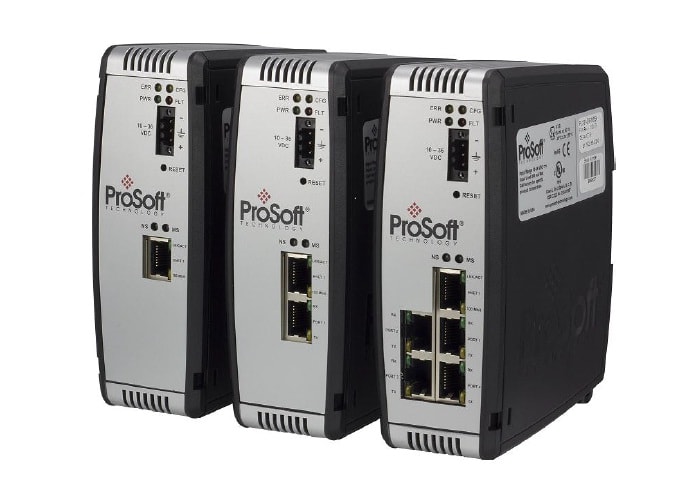

Prosoft - EtherNet/IP_to_ASCII_Gateway - PLX31-EIP-ASCII
874,00 €
par PC
874,00 €
1
Livraison
Nombre d'articles disponibles pour la livraison :0
Spécificités essentielles
tension d'alimentation DC - 10...36 V
type de tension d’alimentation - DC
protocole pris en charge pour EtherNet/IP - oui
largeur - 50.5 mm
hauteur - 136.7 mm
Conditionnement
1 PC
EAN
Réf. Routeco
PLX31-EIP-ASCII
Réf. Fournisseur
PLX31-EIP-ASCII
Réf. Commerciale
PLX31-EIP-ASCII
tension d'alimentation DC:
10...36 V
type de tension d’alimentation:
DC
protocole pris en charge pour EtherNet/IP:
oui
largeur:
50.5 mm
hauteur:
136.7 mm
profondeur:
111.3 mm
EtherNet/IP to ASCII. 10…100MB Ethernet port. Supply 10…36V DC
- ProSoft Technology’s EtherNet/IP to ASCII communication gateway allows high-speed bi-directional data transfers between EtherNet/IP-enabled PACs and ASCII devices such as weigh scales and barcode readers.
- The EtherNet/IP protocol driver supports the explicit messaging implementation.
- The gateway is user-configurable as both a client and a server.
- The gateway has several features that allow for simplified integration, reduced commissioning time and optimized performance
- EtherNet/IP PACs include Rockwell Automation ControlLogix and CompactLogix, as well as several Schneider Electric controllers.
- Applications for this module are found in most industries, especially manufacturing, oil & gas, electrical power and food processing.
