Prosoft - PROFINET Device to Modbus Seri - PLX31-PND-MBS
874,00 €
par PC
874,00 €
1
Livraison
Nombre d'articles disponibles pour la livraison :0
Spécificités essentielles
tension d'alimentation DC - 10...36 V
supporte protocole Modbus - oui
type de tension d’alimentation - DC
largeur - 50.5 mm
hauteur - 137.7 mm
Conditionnement
1 PC
EAN
Réf. Routeco
PLX31-PND-MBS
Réf. Fournisseur
PLX31-PND-MBS
Réf. Commerciale
PLX31-PND-MBS
tension d'alimentation DC:
10...36 V
supporte protocole Modbus:
oui
type de tension d’alimentation:
DC
largeur:
50.5 mm
hauteur:
137.7 mm
profondeur:
111.3 mm

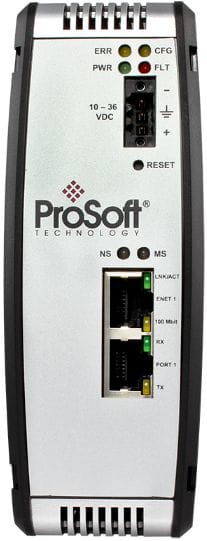

PROFINET Device to Modbus Serial Gateway. Serial Port x1. Supply 24V DC
- The PROFINET device to Modbus Serial gateway offers bi-directional data transfers between a PROFINET Controller and Modbus serial (RTU and ASCII) devices. The serial port can be configured as either a Modbus master or slave. The PROFINET interface operates as a PROFINET device (slave).
- The PLX31-PND-MBS gateway is a stand-alone DIN-rail mounted unit that provides Ethernet connectivity for network communications, remote configuration, and diagnostics. The onboard SD Card slot (SD card optional) is used for storing configuration files that can be used for recovery, transferring the configuration to another gateway, or general configuration backup.
