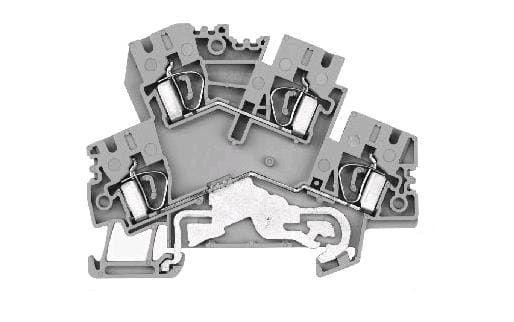

Allen-Bradley - 2-Ckt Blk With 1 Feed/1 Grd Ck - 1492-LDG4

Spring Clamp Terminal Block, Two-Circuit Block with 1 Feed-Through and 1 Ground Circuit, 4 mm (# 22 AWG - # 10 AWG) or 2.5 mm (# 22 AWG - # 12 AWG), Standard Feedthrough, Grey

• Tin-plated terminals and stainless steel spring clamps for resistance to corrosion and vibration

• Spring clamp design to minimize stress relaxation and maintain contact force, even under vibration

• Top wire entry for ease of installation

• Circuit testing with standard 2 mm diameter test probe or stackable test plugs on most spring-clamp blocks

• Insulation stops to ensure electrical connection when using smaller gauge wires

• Markers that are visible after terminal blocks are wired

• Multiple marking options

• Common profiles to minimize stocking of accessories

• Self-extinguishing, polymide 6.6 housing materials with a flammability rating UL 94-V0 (1492-R terminal blocks have a UL 94-V2

• flammability rating)

• Screwless center jumpers to simplify jumpering terminals together
