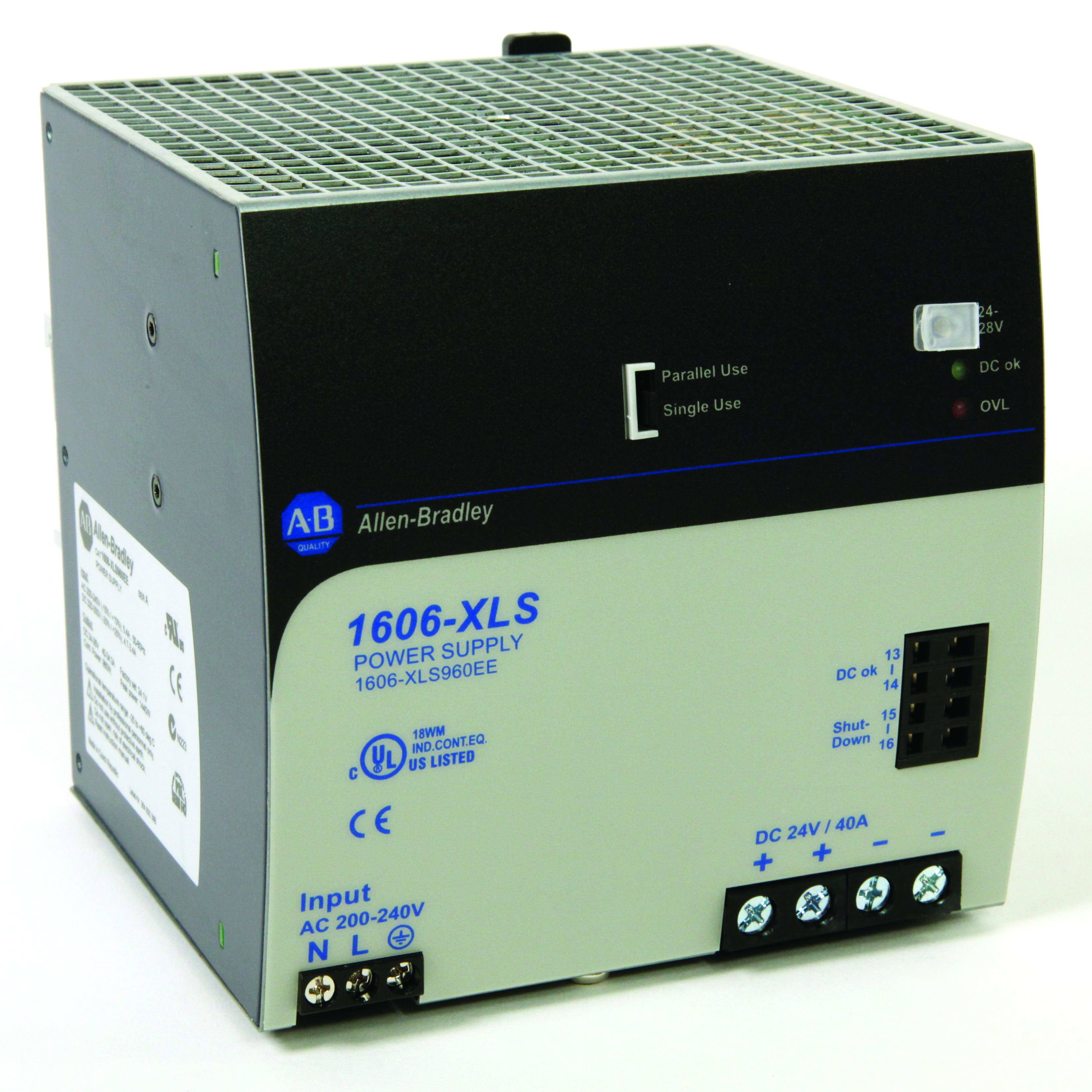

Allen-Bradley - 200 to 240VAC In 24 to 28VDC O - 1606-XLS960EE
door St.
€ 855,58
Bezorging
Belangrijke informatie
Spanningstype voedingsspanning - AC
1e Secundaire spanning - 24...28 V
Max. uitgangsstroom 1 - 40 A
Nom. uitgangsspanning 1 - 24 V
Nom. uitgangsstroom 1 - 34 A
Verpakking
1 St.
EAN
10612598846396
Ref Routeco
1606-XLS960EE
Ref leverancier
1606-XLS960EE
Ref commercieel
1606-XLS960EE
Spanningstype voedingsspanning:
AC
1e Secundaire spanning:
24...28 V
Max. uitgangsstroom 1:
40 A
Nom. uitgangsspanning 1:
24 V
Nom. uitgangsstroom 1:
34 A
Nom. voedingsspanning bij AC 50 Hz:
200...240 V
Vermogensafgifte:
960 W
Uitvoering elektrische aansluiting:
Veerklemaansluiting
Draagrailmontage mogelijk:
ja
Breedte:
125 mm
Hoogte:
124 mm
Diepte:
127 mm
Beschermingsgraad (IP):
IP20
Allen Bradley Performance Power Supply 24V DC 200-240V AC Input 40A DIN Rail Mounted. Our Bulletin 1606-XLS Performance Switched Mode Power Supplies use a technology that significantly reduces unit size yet delivers a 150% power boost. These power supplies offer DC output choices of 5, 12, 15, 24, and 48V in 80...960 W sizes.
- Industry-Leading Efficciency
- Intelligent circuit design with long-life electrolytic capacitors
- Generates minimal heat
- Allows up to 50% additional power reserve without reducing output voltage, while minimizing ripple and noise
- Wide Power Range and Feature Set
- Multiple single- and three-phase inputs available for global applications
- Redundancy modules provide a means for managing dual power supplies for back-up power
- Multiple output voltages available
- Compact Size
- Saves space on plant floor
- Expands plant flexibility
- Approvals
- CE marked
- cULus and cURus listed
Een Allen-Bradley product
Ontdek de Allen-Bradley-serie
