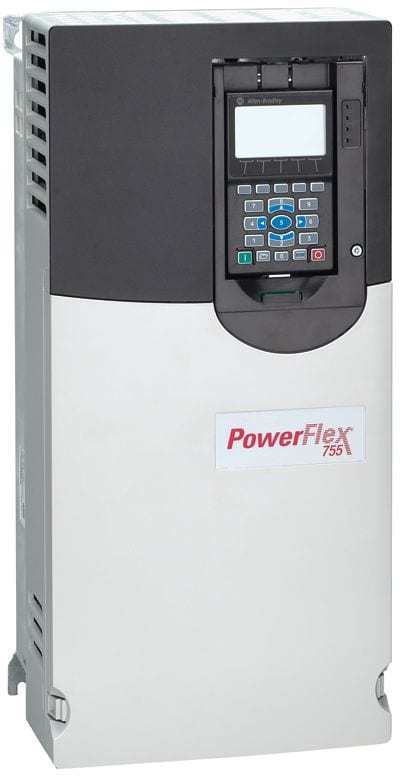

Allen-Bradley - Air Cooled 755 AC Drive - 20G1F3E2K4KNDNNNNN-C0-P15-P16

PowerFlex 755T Drives, Air Cooled, Regenerative & Low Harmonic Drive (PowerFlex 755TR), Type 1/IP21, Floor Mount, LD - 2600HP (2668A), ND - 2500HP (2420A), HD - 2100HP (2070A), 600 VAC, 3PH, Frame 12, Auxiliary EMI Protection & Reflected Wave (dV/dT) Filtering, Door Mounted HIM (20-750-C6S) & TotalFORCE Control

• Power ratings:

• 200...240V: 0.37...132 kW / 0.5…200 Hp / 2.2…477 A

• 380…480V: 0.75…1400 kW / 1.0…2000 Hp / 2.1…2330 A

• 600V: 1.0…1500 Hp / 1.7…1530 A

• 690V: 7.5…1500 kW / 12…1485 A

• IP00/IP20 NEMA/UL Type Open, flange mount, IP54 NEMA/UL Type 12

• Pre-engineered Power Option Bay provides cost-effective solution for popular power options

• Dual-port EtherNet/IP Option Module helps you leverage EtherNet/IP networks, minimize the number of managed switches, and reduce cabling needs when using Device Level Ring (DLR) networks

• Automatic Device Configuration (ADC) allows Logix controllers to detect a replaced drive and download all configuration parameters automatically

• V/Hz control, vector control with FORCE® technology, sensorless vector control, and permanent magnet motor control

• Integrated Motion on EtherNet/IP eases drive configuration and control by using profiles and instruction sets embedded in the Studio 5000 Logix Designer® application

• Predictive diagnostics for increasing the life of cooling fans and relay outputs

• Configuration and programming via integral LCD Human Interface Module (HIM), DriveTools SP software, or Connected Components Workbench software

• Supports easy integration through the embedded EtherNet/IP port and five option slots that support feedback, I/O, safety, and communications modules and an auxiliary 24V DC power supply
