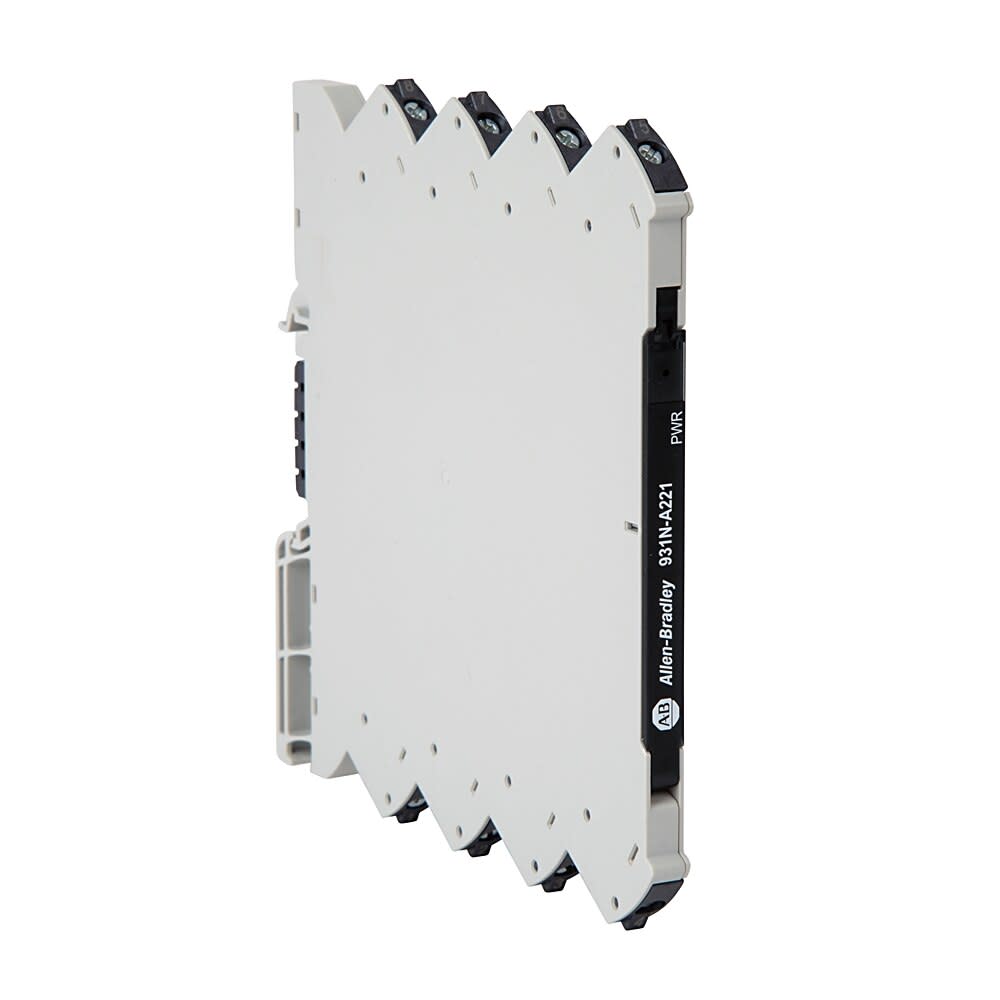

Allen-Bradley - Analog Input to Analog Output; - 931N-A221

Analog Input to Analog Output; 24VDC; Single Channel; DIP switch

• Offers the following Signal Types: Analog, Bipolar, Thermocouple, RTD, Linear Resistance, Potentiometer.

• Offers time savings from power DIN rail option that reduces the need for power supply wiring for each device. One feed module powers up to 75 devices.

• Optimizes panel space with its slim 6 mm design.

• Offers high galvanic isolation, 2.5kV AC.

• Includes angled connection terminals which allow for easy wiring.

• Features DIP switches for easy configuration.

• Offers low power consumption for greater energy efficiency.

• Provides high accuracy (0.05%) for optimal system performance.

• Offers fast response time (less than 5/7 ms for analog signals and less than 30 ms for temperature measurements) lowering downtime.

• Simplifes troubleshooting by onboard sensor and signal error indication.

• Provides NAMUR 43 functional range, 0…23 mA enabling sensor/signal error detection.
