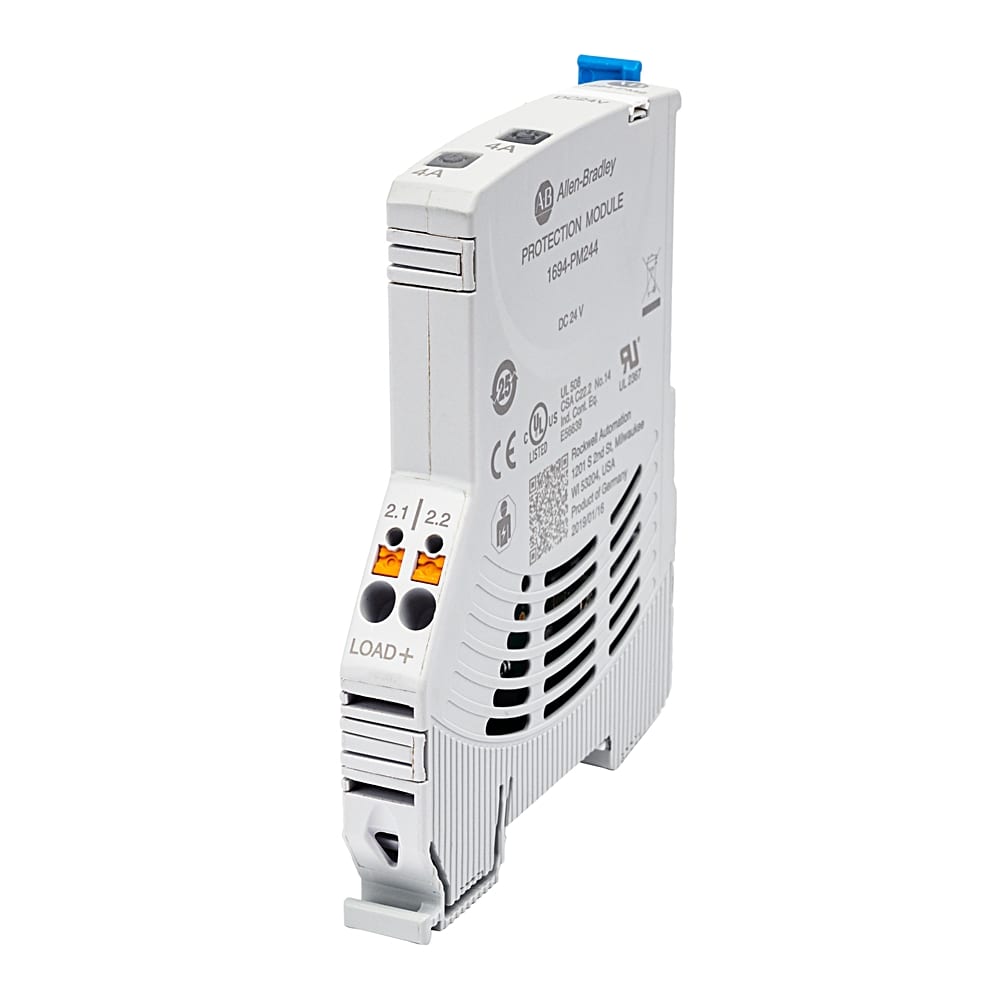

Allen-Bradley - ECP,Protection Mod,2-Channels, - 1694-PM222-CL2

Electronic Circuit Protection, Protection Module, 2-Channels, Fix Current, 2A, 2A, Class 2

• Combination of supply modules, circuit protection and power distribution

• Selective load protection by means of electronic trip curve

• No accessories required for connecting the components

• Width per channel only 12.5 mm (1-channel) or 6.25mm (2-channel)

• Integral fail-safe element, adjusted to current rating

• Switching capacitive loads up to 20,000 µF (at IN > 6A)

• Manual ON/OFF/reset momentary switch

• Clear status indication by means of LED and auxiliary contact (1694-PF supply module)

• Connection via push-in terminals

• 1694-PMx available in Class 2 version with nominal currents: 1A, 2A, 3A, 4A
