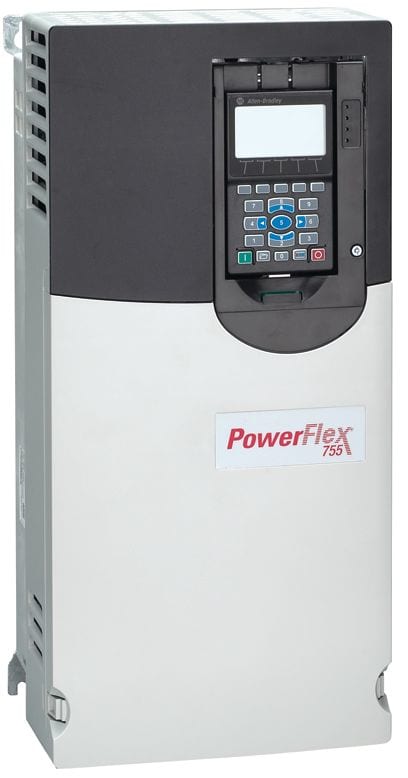

Allen-Bradley - PowerFlex Air Cooled 755 AC Dr - 20G11NC085JA0NNNNN
door St.
€ 10.022,91
Bezorging
Belangrijke informatie
Netspanning - 380...480 V
Max. uitgangsfrequentie - 590 Hz
Nom. uitgangsstroom I2N - 85 A
Max. afgegeven vermogen bij kwadratische belasting bij meetuitgangsspanning - 45 kW
Beschermingsgraad (IP) - IP20
Verpakking
1 St.
EAN
00884951070509
Ref Routeco
20G11NC085JA0NNNNN
Ref leverancier
20G11NC085JA0NNNNN
Ref commercieel
20G11NC085JA0NNNNN
Netspanning:
380...480 V
Max. uitgangsfrequentie:
590 Hz
Nom. uitgangsstroom I2N:
85 A
Max. afgegeven vermogen bij kwadratische belasting bij meetuitgangsspanning:
45 kW
Beschermingsgraad (IP):
IP20
Netfrequentie:
50/60 Hz
Aantal fasen ingang:
3
Aantal fasen uitgang:
3
Max. afgegeven vermogen bij lineaire belasting bij meetuitgangsspanning:
37 kW
Aantal digitale ingangen:
1
Met bedieningselement:
nee
Inzet in woon- en kantorenomgeving toegestaan:
ja
Ondersteunt protocol TCP/IP:
ja
Ondersteunt protocol voor Modbus:
ja
Ondersteunt protocol voor EtherNet/IP:
ja
Aantal HW-interfaces industrieel ethernet:
1
Aantal HW-interfaces serieel RS-485:
1
Geïntegreerde remchopper:
nee
4-kwadrantenbedrijf mogelijk:
ja
Hoogte:
550 mm
Breedte:
270 mm
Diepte:
212 mm
PowerFlex 755 AC Drive, with Embedded Ethernet/IP, Air Cooled, AC Input with DC Terminals, Open Type, 85 Amps, 45kW ND, 37kW HD, 400 VAC, 3 PH, Frame 5, Filtered, CM Jumper Installed, DB Transistor, Blank (No HIM)
- PowerFlex 755 AC Drives provide ease of use, application flexibility, and high performance.
- They include multiple control and hardware options, as well as optional embedded safety features.
- These drives are well-suited for a wide variety of motor control applications including pumps, fans, and conveyors.
- With Integrated Motion on EtherNet/IP, you can place these drives on the same network as Kinetix drives.
- A Dual-port EtherNet/IP Option Module supports ring, linear, and star topologies, as well as Device Level Ring (DLR) functionality for fault tolerant connectivity and high drive availability.
- IP00/IP20 NEMA/UL Type Open, flange mount, IP54 NEMA/UL Type 12.
- Pre-engineered Power Option Bay provides cost-effective solution for popular power options.
- Automatic Device Configuration (ADC) allows Logix controllers to detect a replaced drive and download all configuration parameters automatically.
- V/Hz control, vector control with FORCE™ technology, sensorless vector control, and permanent magnet motor control.
- Integrated Motion on EtherNet/IP eases drive configuration and control by using profiles and instruction sets embedded in the Studio 5000 Logix Designer® application.
- Predictive diagnostics for increasing the life of cooling fans and relay outputs.
- Configuration and programming via integral LCD Human Interface Module (HIM), DriveTools SP software, or Connected Components Workbench software.
