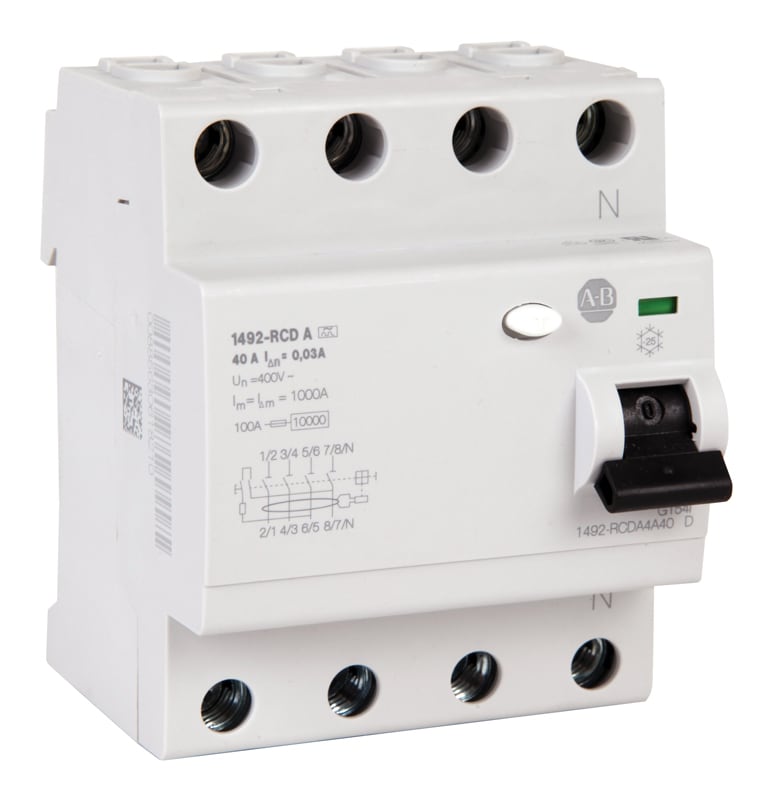

Allen-Bradley - Residual Current Device 40 A - 1492-RCDA4B40S
€ 352,39
door St.
€ 352,39
1
Bezorging
Aantal beschikbare items voor levering:0
Belangrijke informatie
Aantal polen - 4
Nom. (meet)stroom - 40 A
Nom. foutstroom - 0.1 A
Nom. (meet)spanning - 400 V
Nom. stoothoudspanning (Uimp) - 4 kV
Verpakking
1 St.
EAN
00885630618036
Ref Routeco
1492-RCDA4B40S
Ref leverancier
1492-RCDA4B40S
Ref commercieel
1492-RCDA4B40S
Aantal polen:
4
Nom. (meet)stroom:
40 A
Nom. foutstroom:
0.1 A
Nom. (meet)spanning:
400 V
Nom. stoothoudspanning (Uimp):
4 kV
Montagewijze:
DIN-rail
Kortsluitvastheid (Icw):
10 kA
Frequentie:
50/60 Hz
Beschermingsgraad (IP):
IP2X
Inbouwdiepte:
67 mm
Omgevingstemperatuur tijdens bedrijf:
-25...55 °C
Residual Current Device 40 A, 4 pole, 100 mA sensitivity, 480Y/277 VAC Max US 400 VAC Max IEC
- Provides protection against current leakage to ground (earth) caused by an insulation
- loss between a live conductor and an exposed conductive part (such as an abraded wire, or a grounded person touching the live conductor)
- Suitable for protection against AC and pulsating DC (rectified AC) earth leakage current
- 30 mA sensitivity devices for personnel protection (consult local requirements)
- 100, 300 and 500 mA sensitivity devices for equipment protection
- Dual terminals allow a more secure connection of two wires, or both a wire and bus bar
- Reversible line and load connections
