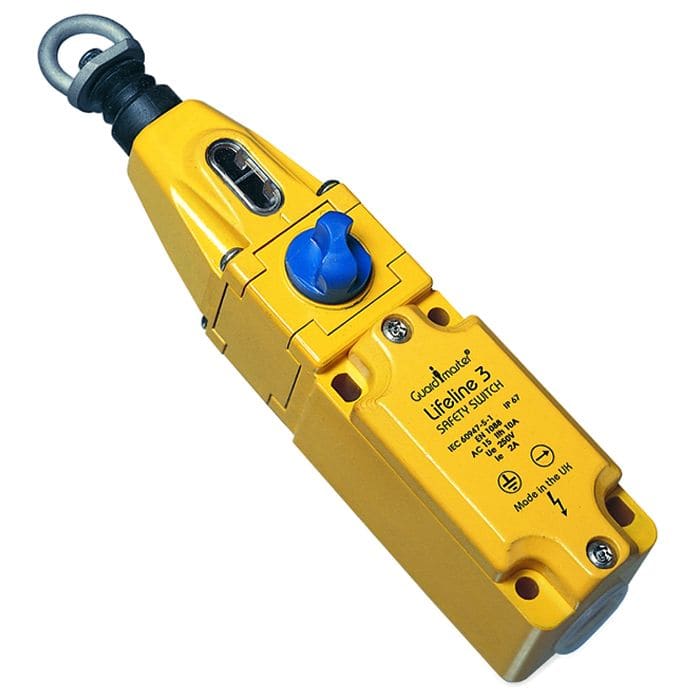

Guardmaster - Guardmaster Lifeline 3 Cable P - 440E-D13118

Rope pull switch. Lifeline 3. Safety contact 2NC. Auxiliary 2NO. Rope length 30m max

• The positive-mode mechanism helps ensure that the contacts are immediately latched open on actuation and can

• only be reset by the intentional action of turning the blue reset knob. The design also helps protect against

• nuisance tripping and the effects of thermal expansion.

• The cable-status indicator makes the system easy to build and maintain for spans up to 30 m (98 ft).

• Four sets of contacts are provided: 2 N.C. + 2 N.O., or 3 N.C. + 1 N.O. contacts.

• Sealed to IP67 with rugged construction that uses die-cast alloy and stainless steel to withstand harsh conditions.

• Universal mounting and operation

• Switch lockout on cable pulled and cable slack

• Industry standard fixing centers to DIN/EN 50041

• Quick disconnect styles available
