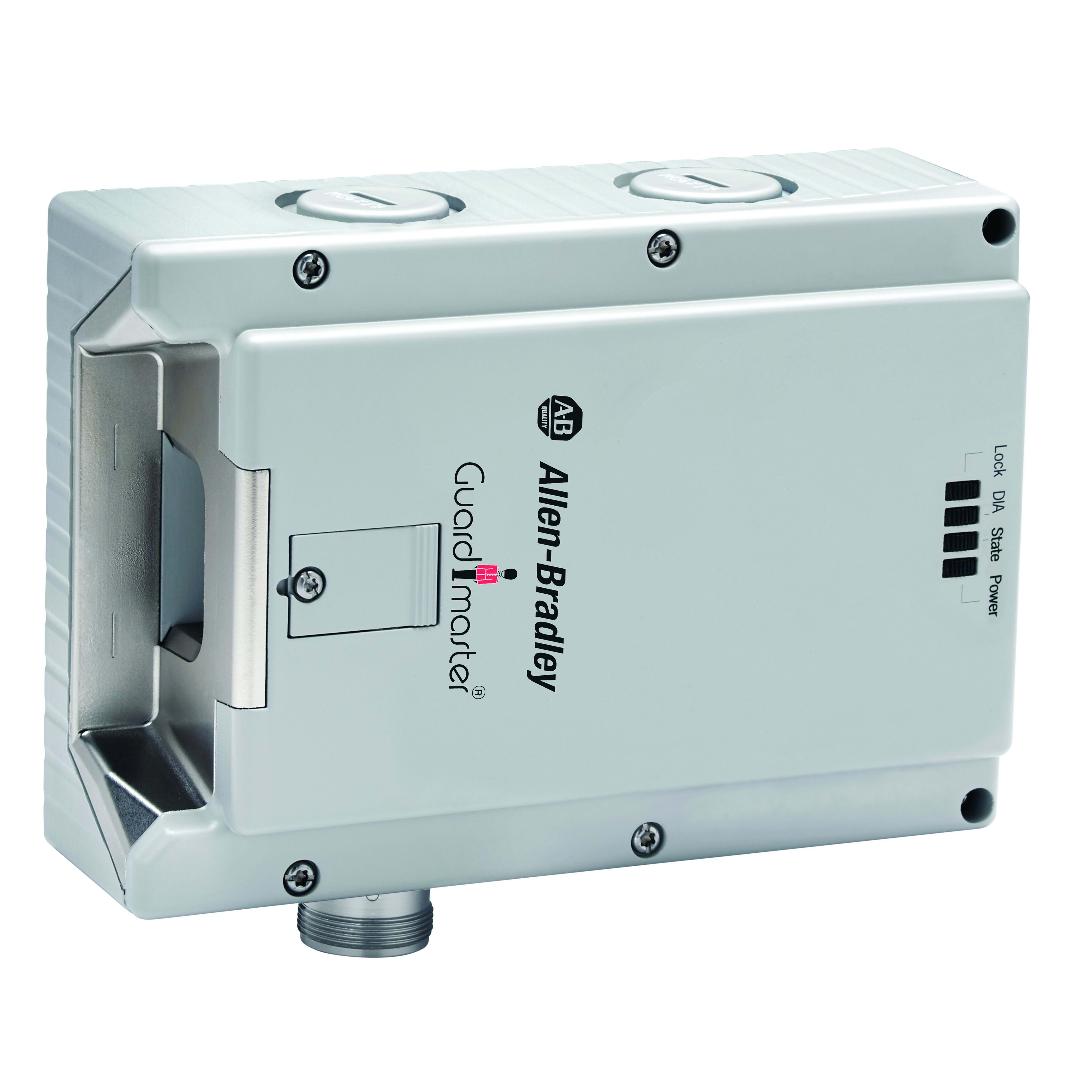

Guardmaster - Lock Module PTL M23 Left - 442G-MABL-ULM-C00
€ 1.004,26
door St.
€ 1.004,26
1
Bezorging
Aantal beschikbare items voor levering:0
Belangrijke informatie
Met status-indicatie - ja
Sluitkracht - 2000 N
Nom. spoelspanning magneetaandrijving bij DC - 5...24 V
Lengte sensor - 155.3 mm
Materiaal behuizing - Kunststof
Verpakking
1 St.
EAN
00887172684814
Ref Routeco
442G-MABL-ULM-C00
Ref leverancier
442G-MABL-ULM-C00
Ref commercieel
442G-MABL-ULM-C00
Met status-indicatie:
ja
Sluitkracht:
2000 N
Nom. spoelspanning magneetaandrijving bij DC:
5...24 V
Lengte sensor:
155.3 mm
Materiaal behuizing:
Kunststof
Omgevingstemperatuur tijdens bedrijf:
-20...55 °C
Beschermingsgraad (IP):
IP65
Lock Module, 442G Access Box, Power to Lock, Unique Code, M23 Connector, Left-hand Guard, Blank Cover
- High holding force 2000N (Fzh tested to ISO 14119) is suitable for a wide
- range of guarding applications
- Unique RFID coded bolt actuator achieves the highest level of tamper resistance
- Available in two models:
- Power-to-Release and Power-to-Lock
- Available with up to four controls and indicators including an E-stop push button
- Optional escape release allows a person locked inside the safeguarded area to exit quickly and easily
- Four bright LEDs provide status and diagnostics
- Outputs for door position, bolt position, and lock status are available to the control system
- Two integrated hasps available to affix padlocks
- Can be operated as a standalone device or in series with other devices
Een Guardmaster product
Ontdek de Guardmaster-serie
