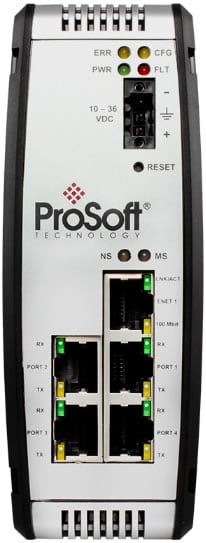

Prosoft - PROFINET Device to Modbus Seri - PLX31-PND-MBS4
€ 1.729,00
door St.
€ 1.729,00
1
Bezorging
Aantal beschikbare items voor levering:0
Belangrijke informatie
Voedingsspanning bij DC - 10...36 V
Ondersteunt protocol voor Modbus - ja
Spanningstype voedingsspanning - DC
Breedte - 50.5 mm
Hoogte - 136.7 mm
Verpakking
1 St.
EAN
Ref Routeco
PLX31-PND-MBS4
Ref leverancier
PLX31-PND-MBS4
Ref commercieel
PLX31-PND-MBS4
Voedingsspanning bij DC:
10...36 V
Ondersteunt protocol voor Modbus:
ja
Spanningstype voedingsspanning:
DC
Breedte:
50.5 mm
Hoogte:
136.7 mm
Diepte:
111.3 mm
PROFINET Device to Modbus Serial Gateway. Serial ports x4. Supply 24V DC
- The PROFINET device to Modbus Serial gateway offers bi-directional data transfers between a PROFINET Controller and Modbus serial (RTU and ASCII) devices. Each Modbus serial port can be configured as either a Modbus master or slave. The PROFINET interface operates as a PROFINET device (slave).
- The PLX31-PND-MBS4 gateway is a stand-alone DIN-rail mounted unit that provides Ethernet connectivity for network communications, remote configuration, and diagnostics. The onboard SD Card slot (SD card optional) is used for storing configuration files that can be used for recovery, transferring the configuration to another gateway, or general configuration backup.
